geometry::DataInterior Class Reference

A class to check if the node is in interior or exterior. More...

#include <interiorFlags.h>

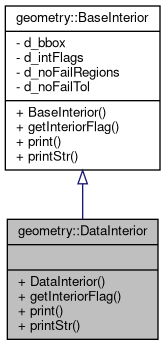

Inheritance diagram for geometry::DataInterior:

Collaboration diagram for geometry::DataInterior:

Public Member Functions
	DataInterior (inp::InteriorFlagsDeck *deck, const std::vector< util::Point3 > *nodes, std::pair< std::vector< double >, std::vector< double >> bbox, std::vector< std::pair< std::string, std::vector< double >>> no_fail_regions)
	Constructor. More...
bool	getInteriorFlag (const size_t &i, const util::Point3 &x) override
	Returns true if node is in interior, false otherwise. More...
void	print (int nt=0, int lvl=0) const
	Prints the information about the instance of the object. More...
std::string	printStr (int nt=0, int lvl=0) const
	Returns the string containing information about the instance of the object. More...
Public Member Functions inherited from geometry::BaseInterior
	BaseInterior (inp::InteriorFlagsDeck *deck, std::pair< std::vector< double >, std::vector< double >> bbox, std::vector< std::pair< std::string, std::vector< double >>> no_fail_regions)
	Constructor. More...
void	print (int nt=0, int lvl=0) const
	Prints the information about the instance of the object. More...
std::string	printStr (int nt=0, int lvl=0) const
	Returns the string containing information about the instance of the object. More...

Detailed Description

A class to check if the node is in interior or exterior.

This class stores the interior flags of all nodes so that the flags are not computed every time it is needed.

Constructor & Destructor Documentation

DataInterior()

geometry::DataInterior::DataInterior	(	inp::InteriorFlagsDeck *	deck,
		const std::vector< util::Point3 > *	nodes,
		std::pair< std::vector< double >, std::vector< double >>	bbox,
		std::vector< std::pair< std::string, std::vector< double >>>	no_fail_regions
	)

Constructor.

Parameters

deck	Input deck which contains user-specified information
nodes	Pointer to the list of nodal coordinates
bbox	Bounding box to determine the location of nodes relative to the boundary
no_fail_regions	No fail regions other than the boundary of domain

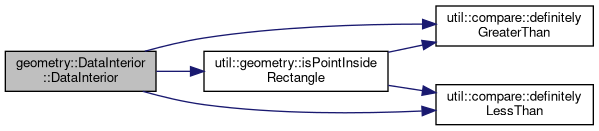

Here is the call graph for this function:

Member Function Documentation

getInteriorFlag()

bool geometry::DataInterior::getInteriorFlag ( const size_t &  i, const util::Point3 &  x  )

overridevirtual

Returns true if node is in interior, false otherwise.

This function simply looks up at the stored bit corresponding to the node and returns true and false depending on whether bit is 0 or 1.

Parameters

i	Nodal id
x	Nodal coordinate

Returns

True/False If node is in interior or exterior

Reimplemented from geometry::BaseInterior.

print()

void geometry::DataInterior::print ( int  nt = 0, int  lvl = 0  ) const

inline

Prints the information about the instance of the object.

Parameters

nt	Number of tabs to append before each line of string
lvl	Level of information sought (higher level means more information)

Here is the call graph for this function:

printStr()

std::string geometry::DataInterior::printStr	(	int	nt = 0,
		int	lvl = 0
	)		const

Returns the string containing information about the instance of the object.

Parameters

nt	Number of tabs to append before each line of string
lvl	Level of information sought (higher level means more information)

Returns

string String containing information about this object

Referenced by print().

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• /root/project/src/geometry/interiorFlags.h
• /root/project/src/geometry/interiorFlags.cpp
