loading::InitialCondition Class Reference

A class to apply initial condition. More...

#include <initialCondition.h>

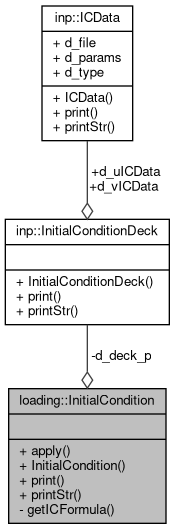

Collaboration diagram for loading::InitialCondition:

Public Member Functions
void	apply (std::vector< util::Point3 > *u, std::vector< util::Point3 > *v, fe::Mesh *mesh)
	Applies initial condition to displacement and velocity. More...
	InitialCondition (inp::InitialConditionDeck *deck)
	Constructor. More...
void	print (int nt=0, int lvl=0) const
	Prints the information about the instance of the object. More...
std::string	printStr (int nt=0, int lvl=0) const
	Returns the string containing information about the instance of the object. More...

Private Member Functions
double	getICFormula (const std::string &fn_type, const std::vector< double > &params, const util::Point3 &x, const size_t &dof, const size_t &dim)
	Computes the formula specified by input file. More...

Private Attributes
inp::InitialConditionDeck *	d_deck_p
	Initial condition deck.

Detailed Description

A class to apply initial condition.

This class processes input data and provides method to apply initial condition.

Constructor & Destructor Documentation

InitialCondition()

loading::InitialCondition::InitialCondition ( inp::InitialConditionDeck *  deck )

explicit

Constructor.

Parameters

deck	Input deck which contains user-specified information

Member Function Documentation

apply()

void loading::InitialCondition::apply	(	std::vector< util::Point3 > *	u,
		std::vector< util::Point3 > *	v,
		fe::Mesh *	mesh
	)

Applies initial condition to displacement and velocity.

Parameters

u	Vector nodal displacements
v	Vector nodal velocities
mesh	Mesh object

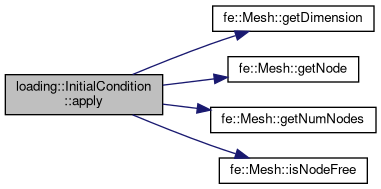

Here is the call graph for this function:

getICFormula()

double loading::InitialCondition::getICFormula ( const std::string &  fn_type, const std::vector< double > &  params, const util::Point3 &  x, const size_t &  dof, const size_t &  dim  )

private

Computes the formula specified by input file.

Parameters

fn_type	Type of function in formula
params	List of required parameters
x	Coordinate of point
dof	Degree of freedom (0 for X, 1 for Y, 2 for Z)
dim	Dimension

Returns

value Value of formula at the point

Here is the call graph for this function:

print()

void loading::InitialCondition::print ( int  nt = 0, int  lvl = 0  ) const

inline

Prints the information about the instance of the object.

Parameters

nt	Number of tabs to append before each line of string
lvl	Level of information sought (higher level means more information)

Here is the call graph for this function:

printStr()

std::string loading::InitialCondition::printStr	(	int	nt = 0,
		int	lvl = 0
	)		const

Returns the string containing information about the instance of the object.

Parameters

nt	Number of tabs to append before each line of string
lvl	Level of information sought (higher level means more information)

Returns

string String containing information about this object

Referenced by print().

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• /root/project/src/loading/initialCondition.h
• /root/project/src/loading/initialCondition.cpp
