rw::writer::MshWriter Class Reference

A .msh writer for simple point data and complex fem mesh data. More...

#include <mshWriter.h>

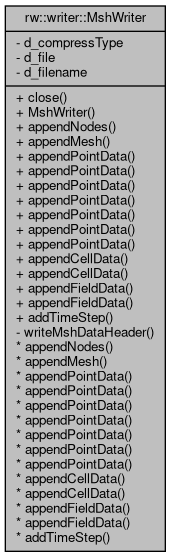

Collaboration diagram for rw::writer::MshWriter:

Public Member Functions
void	close ()
	Closes the file and store it to the hard disk.
	MshWriter (const std::string &filename, const std::string &compress_type="")
	Constructor. More...
Mesh data
void	appendNodes (const std::vector< util::Point3 > *nodes, const std::vector< util::Point3 > *u=nullptr)
	Writes the nodes to the file. More...
void	appendMesh (const std::vector< util::Point3 > *nodes, const size_t &element_type, const std::vector< size_t > *en_con, const std::vector< util::Point3 > *u=nullptr)
	Writes the mesh data to file. More...
Point data
void	appendPointData (const std::string &name, const std::vector< uint8_t > *data)
	Writes the scalar point data to the file. More...
void	appendPointData (const std::string &name, const std::vector< size_t > *data)
	Writes the scalar point data to the file. More...
void	appendPointData (const std::string &name, const std::vector< int > *data)
	Writes the scalar point data to the file. More...
void	appendPointData (const std::string &name, const std::vector< float > *data)
	Writes the scalar point data to the file. More...
void	appendPointData (const std::string &name, const std::vector< double > *data)
	Writes the scalar point data to the file. More...
void	appendPointData (const std::string &name, const std::vector< util::Point3 > *data)
	Writes the vector point data to the file. More...
void	appendPointData (const std::string &name, const std::vector< util::SymMatrix3 > *data)
	Writes the symmetric matrix data associated to nodes to the file. More...
Cell data
void	appendCellData (const std::string &name, const std::vector< float > *data)
	Writes the float data associated to cells to the file. More...
void	appendCellData (const std::string &name, const std::vector< util::SymMatrix3 > *data)
	Writes the symmetric matrix data associated to cells to the file. More...
Field data
void	appendFieldData (const std::string &name, const double &data)
	Writes the scalar field data to the file. More...
void	appendFieldData (const std::string &name, const float &data)
	Writes the scalar field data to the file. More...
void	addTimeStep (const double &timestep)
	Writes the time step to the file. More...

Private Member Functions
void	writeMshDataHeader (const std::string &name, int field_type, size_t num_data, bool is_node_data=true)
	utility function More...

Private Attributes
std::string	d_compressType
	compression_type Specify the compressor (if any)
FILE *	d_file
	vtk/vtu file
std::string	d_filename
	filename

Detailed Description

A .msh writer for simple point data and complex fem mesh data.

We are using Gmsh 2.0 format.

Constructor & Destructor Documentation

MshWriter()

rw::writer::MshWriter::MshWriter ( const std::string &  filename, const std::string &  compress_type = ""  )

explicit

Constructor.

Creates and opens .vtu file of name given by filename. The file remains open till the close() function is invoked.

Parameters

filename	Name of file which will be created
compress_type	Compression method (optional)

Member Function Documentation

addTimeStep()

void rw::writer::MshWriter::addTimeStep

(

const double &

timestep

)

Writes the time step to the file.

Parameters

timestep

Current time step of the simulation

appendCellData() [1/2]

void rw::writer::MshWriter::appendCellData	(	const std::string &	name,
		const std::vector< float > *	data
	)

Writes the float data associated to cells to the file.

Parameters

name	Name of the data
data	Vector containing the data

appendCellData() [2/2]

void rw::writer::MshWriter::appendCellData	(	const std::string &	name,
		const std::vector< util::SymMatrix3 > *	data
	)

Writes the symmetric matrix data associated to cells to the file.

Parameters

name	Name of the data
data	Vector containing the data

appendFieldData() [1/2]

void rw::writer::MshWriter::appendFieldData	(	const std::string &	name,
		const double &	data
	)

Writes the scalar field data to the file.

Parameters

name	Name of the data
data	Value

appendFieldData() [2/2]

void rw::writer::MshWriter::appendFieldData	(	const std::string &	name,
		const float &	data
	)

Writes the scalar field data to the file.

Parameters

name	Name of the data
data	Value

appendMesh()

void rw::writer::MshWriter::appendMesh	(	const std::vector< util::Point3 > *	nodes,
		const size_t &	element_type,
		const std::vector< size_t > *	en_con,
		const std::vector< util::Point3 > *	u = nullptr
	)

Writes the mesh data to file.

Parameters

nodes	Vector of nodal coordinates
element_type	Type of element
en_con	Vector of element-node connectivity
u	Vector of nodal displacement

appendNodes()

void rw::writer::MshWriter::appendNodes	(	const std::vector< util::Point3 > *	nodes,
		const std::vector< util::Point3 > *	u = nullptr
	)

Writes the nodes to the file.

Parameters

nodes	Reference positions of the nodes
u	Nodal displacements

appendPointData() [1/7]

void rw::writer::MshWriter::appendPointData	(	const std::string &	name,
		const std::vector< double > *	data
	)

Writes the scalar point data to the file.

Parameters

name	Name of the data
data	Vector containing the data

appendPointData() [2/7]

void rw::writer::MshWriter::appendPointData	(	const std::string &	name,
		const std::vector< float > *	data
	)

Writes the scalar point data to the file.

Parameters

name	Name of the data
data	Vector containing the data

appendPointData() [3/7]

void rw::writer::MshWriter::appendPointData	(	const std::string &	name,
		const std::vector< int > *	data
	)

Writes the scalar point data to the file.

Parameters

name	Name of the data
data	Vector containing the data

appendPointData() [4/7]

void rw::writer::MshWriter::appendPointData	(	const std::string &	name,
		const std::vector< size_t > *	data
	)

Writes the scalar point data to the file.

Parameters

name	Name of the data
data	Vector containing the data

appendPointData() [5/7]

void rw::writer::MshWriter::appendPointData	(	const std::string &	name,
		const std::vector< uint8_t > *	data
	)

Writes the scalar point data to the file.

Parameters

name	Name of the data
data	Vector containing the data

appendPointData() [6/7]

void rw::writer::MshWriter::appendPointData	(	const std::string &	name,
		const std::vector< util::Point3 > *	data
	)

Writes the vector point data to the file.

Parameters

name	Name of the data
data	Vector containing the data

appendPointData() [7/7]

void rw::writer::MshWriter::appendPointData	(	const std::string &	name,
		const std::vector< util::SymMatrix3 > *	data
	)

Writes the symmetric matrix data associated to nodes to the file.

Parameters

name	Name of the data
data	Vector containing the data

writeMshDataHeader()

void rw::writer::MshWriter::writeMshDataHeader ( const std::string &  name, int  field_type, size_t  num_data, bool  is_node_data = true  )

private

utility function

field_type:

• 1 - scalar with 1 component
• 2 - vector with 2 component
• 3 - vector with 3 component
• 6 - symmetric tensor with 6 component

Parameters

name
field_type
num_data
is_node_data

---

The documentation for this class was generated from the following files:

• /root/project/src/rw/mshWriter.h
• /root/project/src/rw/mshWriter.cpp
