inp::BCData Struct Reference

Structure for displacement/force boundary condition input data. More...

#include <loadingDeck.h>

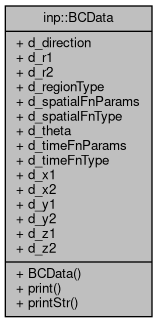

Collaboration diagram for inp::BCData:

Public Member Functions
	BCData ()
	Constructor.
void	print (int nt=0, int lvl=0) const
	Prints the information about the instance of the object. More...
std::string	printStr (int nt=0, int lvl=0) const
	Returns the string containing information about the instance of the object. More...

Data Fields
std::vector< size_t >	d_direction
	List of dofs on which this BC will be applied. More...
double	d_r1
	Radius (for circle and outer for torus)
double	d_r2
	Inner radius (for torus)
std::string	d_regionType
	Type of region over which the bc will be applied. More...
std::vector< double >	d_spatialFnParams
	List of parameters for function wrt spatial coordinate.
std::string	d_spatialFnType
	Name of the formula of with respect to spatial coordinate. More...
double	d_theta
	Angle of the rectangle (for angled rectangle)
std::vector< double >	d_timeFnParams
	List of parameters for function wrt time.
std::string	d_timeFnType
	Name of the formula with respect to time. More...
double	d_x1
	X coordinate of left-bottom point of rectangle/angled rectangle.
double	d_x2
	X coordinate of right-top point of rectangle/angled rectangle.
double	d_y1
	Y coordinate of left-bottom point of rectangle/angled rectangle.
double	d_y2
	Y coordinate of right-top point of rectangle/angled rectangle.
double	d_z1
	Z coordinate of left-bottom-back point of cuboid.
double	d_z2
	Z coordinate of right-top-front point of cuboid.

Detailed Description

Structure for displacement/force boundary condition input data.

Member Function Documentation

print()

void inp::BCData::print ( int  nt = 0, int  lvl = 0  ) const

inline

Prints the information about the instance of the object.

Parameters

nt	Number of tabs to append before each line of string
lvl	Level of information sought (higher level means more information)

Here is the call graph for this function:

printStr()

std::string inp::BCData::printStr ( int  nt = 0, int  lvl = 0  ) const

inline

Returns the string containing information about the instance of the object.

Parameters

nt	Number of tabs to append before each line of string
lvl	Level of information sought (higher level means more information)

Returns

string String containing information about this object

Referenced by print().

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

d_direction

std::vector<size_t> inp::BCData::d_direction

List of dofs on which this BC will be applied.

E.g. if BC is only applied on x-component, d_direction will be 1. If BC is applied on x- and y-component, d_direction will be vector with elements 1 and 2.

Referenced by loading::FLoading::apply(), loading::ULoading::apply(), printStr(), and inp::Input::setLoadingDeck().

d_regionType

std::string inp::BCData::d_regionType

Type of region over which the bc will be applied.

List of allowed values are:

• line (1d)
• rectangle (2d)
• angled_rectangle (2d)
• cuboid (3d)
• displacement_from_pum (2d only)

Referenced by loading::ULoading::apply(), printStr(), and inp::Input::setLoadingDeck().

d_spatialFnType

std::string inp::BCData::d_spatialFnType

Name of the formula of with respect to spatial coordinate.

List of allowed values are:

• "" (none)
• constant
• hat_x
• hat_y
• sin

Referenced by loading::FLoading::apply(), loading::ULoading::apply(), printStr(), and inp::Input::setLoadingDeck().

d_timeFnType

std::string inp::BCData::d_timeFnType

Name of the formula with respect to time.

List of allowed values are:

• "" (none)
• constant
• linear
• linear_step
• linear_slow_fast

Referenced by loading::FLoading::apply(), loading::ULoading::apply(), printStr(), and inp::Input::setLoadingDeck().

---

The documentation for this struct was generated from the following file:

• /root/project/src/inp/decks/loadingDeck.h
