Datatype to hold instructions for post-processing operation. More...

#include <util.h>

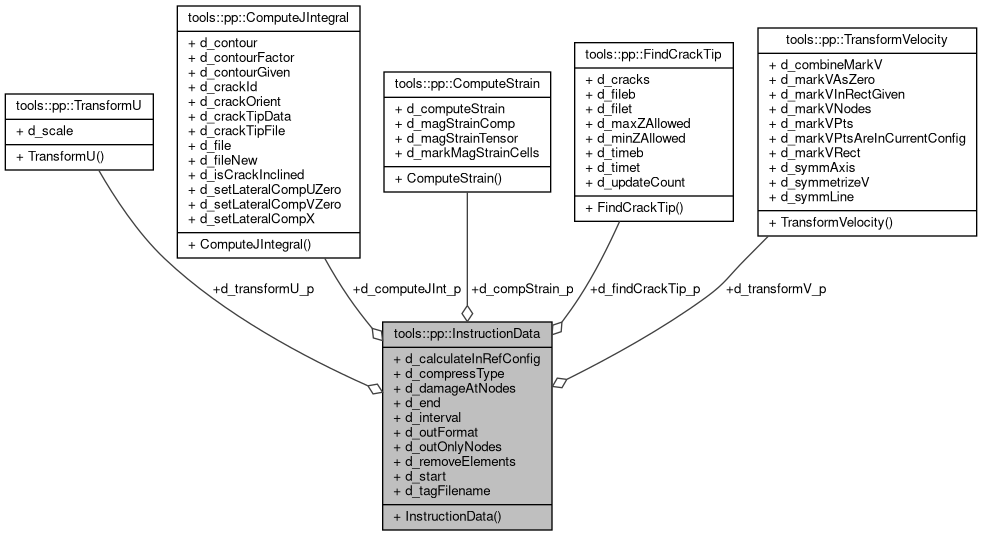

Collaboration diagram for tools::pp::InstructionData:

Data Fields
bool	d_calculateInRefConfig
	Calculate in reference configuration.

std::string	d_compressType
	Compression type for .vtu files.

tools::pp::ComputeStrain *	d_compStrain_p
	Compute strain and its magnitude operation.

tools::pp::ComputeJIntegral *	d_computeJInt_p
	J-integral calculation operation.

bool	d_damageAtNodes
	Computing damage at nodes operation.

int	d_end
	End output step.

tools::pp::FindCrackTip *	d_findCrackTip_p
	Find crack tip and compute velocity operation.

int	d_interval
	Number which indicates how many simulation file we skip after processing 1 simulation file. Default is 1. Valid number >= 1.

std::string	d_outFormat
	Specify format of the output file, e.g. msh, vtu, legacy_vtk. More...

bool	d_outOnlyNodes
	Flag for performing only nodal output and not full fem output (for large mesh, vtk produces error when writing element-node connectivity)

bool	d_removeElements
	Flag for removing elements which contain damages quadrature point (currently this is not implemented)

int	d_start
	Start output step.

std::string	d_tagFilename
	Tag assigned to this compute instruction (used for creating output filename)

tools::pp::TransformU *	d_transformU_p
	Transforming of displacement operation.

tools::pp::TransformVelocity *	d_transformV_p
	Transform velocity operation.

Detailed Description

Datatype to hold instructions for post-processing operation.

Field Documentation

std::string tools::pp::InstructionData::d_outFormat

Specify format of the output file, e.g. msh, vtu, legacy_vtk.

Default is vtu format

The documentation for this struct was generated from the following file:
