rw::writer::Writer Class Reference

A interface class writing data. More...

#include <writer.h>

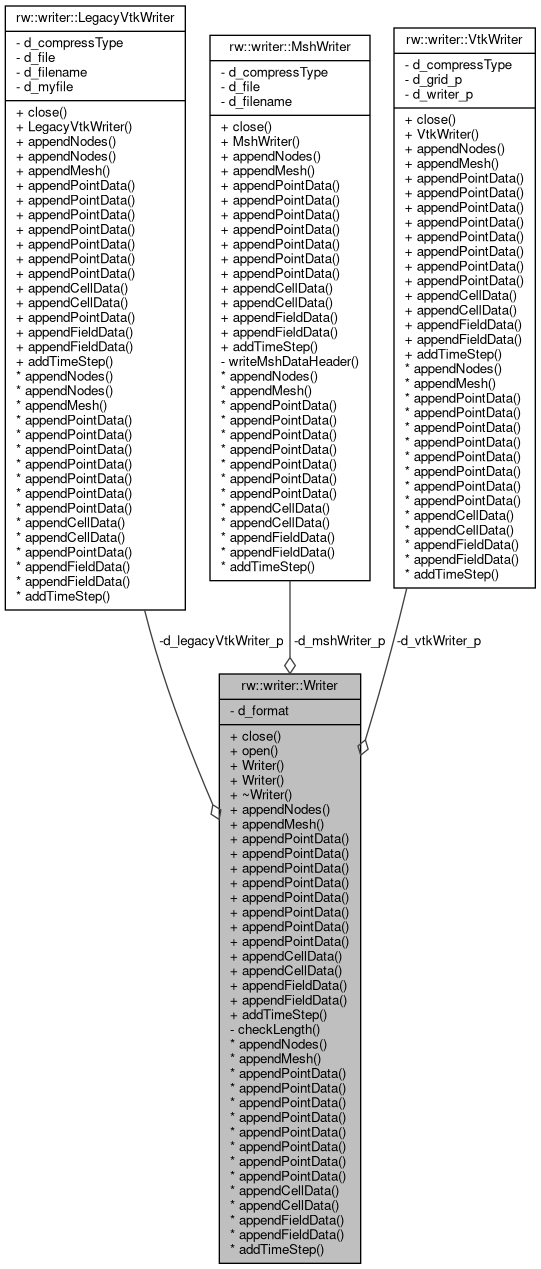

Collaboration diagram for rw::writer::Writer:

Public Member Functions
void	close ()
	Closes the file and store it to the hard disk.
void	open (const std::string &filename, const std::string &format="vtu", const std::string &compress_type="")
	Open a .vtu file. More...
	Writer ()
	Constructor.
	Writer (const std::string &filename, const std::string &format="vtu", const std::string &compress_type="")
	Constructor. More...
	~Writer ()
	Destructor.
Mesh data
void	appendNodes (const std::vector< util::Point3 > *nodes, const std::vector< util::Point3 > *u=nullptr)
	Writes the nodes to the file. More...
void	appendMesh (const std::vector< util::Point3 > *nodes, const size_t &element_type, const std::vector< size_t > *en_con, const std::vector< util::Point3 > *u=nullptr)
	Writes the mesh data to file. More...
Point data
void	appendPointData (const std::string &name, const std::vector< uint8_t > *data)
	Writes the scalar point data to the file. More...
void	appendPointData (const std::string &name, const std::vector< size_t > *data)
	Writes the scalar point data to the file. More...
void	appendPointData (const std::string &name, const std::vector< int > *data)
	Writes the scalar point data to the file. More...
void	appendPointData (const std::string &name, const std::vector< float > *data)
	Writes the scalar point data to the file. More...
void	appendPointData (const std::string &name, const std::vector< double > *data)
	Writes the scalar point data to the file. More...
void	appendPointData (const std::string &name, const std::vector< util::Point3 > *data)
	Writes the vector point data to the file. More...
void	appendPointData (const std::string &name, const std::vector< util::SymMatrix3 > *data)
	Writes the symmetric matrix data associated to nodes to the file. More...
void	appendPointData (const std::string &name, const std::vector< blaze::StaticMatrix< double, 3, 3 > > *data)
	Writes the matrix data associated to nodes to the file. More...
Cell data
void	appendCellData (const std::string &name, const std::vector< float > *data)
	Writes the float data associated to cells to the file. More...
void	appendCellData (const std::string &name, const std::vector< util::SymMatrix3 > *data)
	Writes the symmetric matrix data associated to cells to the file. More...
Field data
void	appendFieldData (const std::string &name, const double &data)
	Writes the scalar field data to the file. More...
void	appendFieldData (const std::string &name, const float &data)
	Writes the scalar field data to the file. More...
void	addTimeStep (const double &timestep)
	Writes the time step to the file. More...

Private Member Functions
void	checkLength (const size_t length, const std::string &name)
	Check if the field is not zero This check is important for the legacy vtk writer, since empty fields result in warnings while laoding the data. More...

Private Attributes
std::string	d_format
	Format of output file.
rw::writer::LegacyVtkWriter *	d_legacyVtkWriter_p
	Pointer to the vtk writer class.
rw::writer::MshWriter *	d_mshWriter_p
	Pointer to the vtk writer class.
rw::writer::VtkWriter *	d_vtkWriter_p
	Pointer to the vtk writer class.

Detailed Description

A interface class writing data.

This interface separates the caller from vtk library.

Constructor & Destructor Documentation

Writer()

rw::writer::Writer::Writer ( const std::string &  filename, const std::string &  format = "vtu", const std::string &  compress_type = ""  )

explicit

Constructor.

Creates and opens .vtu file of name given by filename. The file remains open till the close() function is invoked or if the instance of this class is destroyed.

Parameters

filename	Name of file which will be created
format	Format of the output file, e.g. "vtu", "msh"
compress_type	Specify the compression type (optional)

Here is the call graph for this function:

Member Function Documentation

addTimeStep()

void rw::writer::Writer::addTimeStep

(

const double &

timestep

)

Writes the time step to the file.

Parameters

timestep

Current time step of the simulation

Referenced by tools::pp::Compute::initWriter().

Here is the caller graph for this function:

appendCellData() [1/2]

void rw::writer::Writer::appendCellData	(	const std::string &	name,
		const std::vector< float > *	data
	)

Writes the float data associated to cells to the file.

Parameters

name	Name of the data
data	Vector containing the data

appendCellData() [2/2]

void rw::writer::Writer::appendCellData	(	const std::string &	name,
		const std::vector< util::SymMatrix3 > *	data
	)

Writes the symmetric matrix data associated to cells to the file.

Parameters

name	Name of the data
data	Vector containing the data

appendFieldData() [1/2]

void rw::writer::Writer::appendFieldData	(	const std::string &	name,
		const double &	data
	)

Writes the scalar field data to the file.

Parameters

name	Name of the data
data	Value

appendFieldData() [2/2]

void rw::writer::Writer::appendFieldData	(	const std::string &	name,
		const float &	data
	)

Writes the scalar field data to the file.

Parameters

name	Name of the data
data	Value

appendMesh()

void rw::writer::Writer::appendMesh	(	const std::vector< util::Point3 > *	nodes,
		const size_t &	element_type,
		const std::vector< size_t > *	en_con,
		const std::vector< util::Point3 > *	u = nullptr
	)

Writes the mesh data to file.

Parameters

nodes	Vector of nodal coordinates
element_type	Type of element
en_con	Vector of element-node connectivity
u	Vector of nodal displacement

Referenced by tools::pp::Compute::initWriter().

Here is the caller graph for this function:

appendNodes()

void rw::writer::Writer::appendNodes	(	const std::vector< util::Point3 > *	nodes,
		const std::vector< util::Point3 > *	u = nullptr
	)

Writes the nodes to the file.

Parameters

nodes	Reference positions of the nodes
u	Nodal displacements

Referenced by tools::pp::Compute::initWriter().

Here is the caller graph for this function:

appendPointData() [1/8]

void rw::writer::Writer::appendPointData	(	const std::string &	name,
		const std::vector< blaze::StaticMatrix< double, 3, 3 > > *	data
	)

Writes the matrix data associated to nodes to the file.

Parameters

name	Name of the data
data	Vector containing the data

appendPointData() [2/8]

void rw::writer::Writer::appendPointData	(	const std::string &	name,
		const std::vector< double > *	data
	)

Writes the scalar point data to the file.

Parameters

name	Name of the data
data	Vector containing the data

appendPointData() [3/8]

void rw::writer::Writer::appendPointData	(	const std::string &	name,
		const std::vector< float > *	data
	)

Writes the scalar point data to the file.

Parameters

name	Name of the data
data	Vector containing the data

appendPointData() [4/8]

void rw::writer::Writer::appendPointData	(	const std::string &	name,
		const std::vector< int > *	data
	)

Writes the scalar point data to the file.

Parameters

name	Name of the data
data	Vector containing the data

appendPointData() [5/8]

void rw::writer::Writer::appendPointData	(	const std::string &	name,
		const std::vector< size_t > *	data
	)

Writes the scalar point data to the file.

Parameters

name	Name of the data
data	Vector containing the data

appendPointData() [6/8]

void rw::writer::Writer::appendPointData	(	const std::string &	name,
		const std::vector< uint8_t > *	data
	)

Writes the scalar point data to the file.

Parameters

name	Name of the data
data	Vector containing the data

Referenced by tools::pp::Compute::Compute(), tools::pp::Compute::transformU(), and tools::pp::Compute::transformV().

Here is the caller graph for this function:

appendPointData() [7/8]

void rw::writer::Writer::appendPointData	(	const std::string &	name,
		const std::vector< util::Point3 > *	data
	)

Writes the vector point data to the file.

Parameters

name	Name of the data
data	Vector containing the data

appendPointData() [8/8]

void rw::writer::Writer::appendPointData	(	const std::string &	name,
		const std::vector< util::SymMatrix3 > *	data
	)

Writes the symmetric matrix data associated to nodes to the file.

Parameters

name	Name of the data
data	Vector containing the data

checkLength()

void rw::writer::Writer::checkLength ( const size_t  length, const std::string &  name  )

inlineprivate

Check if the field is not zero This check is important for the legacy vtk writer, since empty fields result in warnings while laoding the data.

Parameters

length	Size of the field
name	Name of the field

open()

void rw::writer::Writer::open	(	const std::string &	filename,
		const std::string &	format = "vtu",
		const std::string &	compress_type = ""
	)

Open a .vtu file.

Parameters

filename	Name of file which will be created
format	Format of the output file, e.g. "vtu", "msh"
compress_type	Compression type (optional)

Referenced by tools::pp::Compute::initWriter(), and Writer().

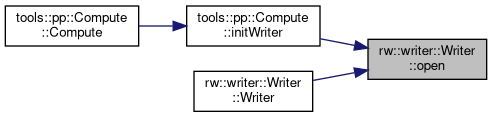

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• /root/project/src/rw/writer.h
• /root/project/src/rw/writer.cpp
