A base class providing methods to compute energy density and force. More...

#include <baseMaterial.h>

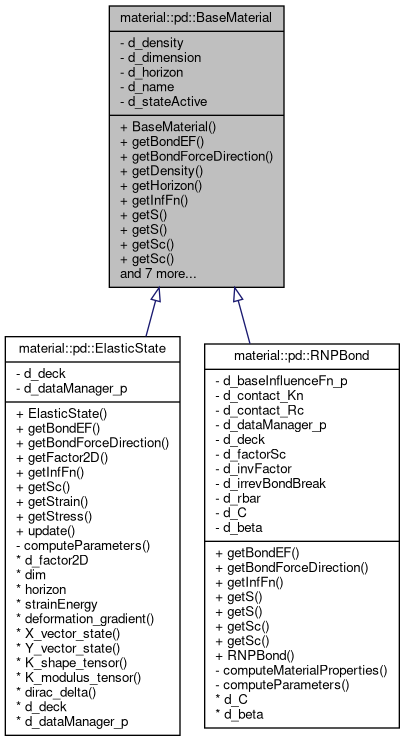

Inheritance diagram for material::pd::BaseMaterial:

Collaboration diagram for material::pd::BaseMaterial:

Public Member Functions
	BaseMaterial (const size_t &dim, const double &horizon)
	Constructor. More...

virtual std::pair< util::Point3, double >	getBondEF (size_t i, size_t j)
	Returns energy and force between bond. More...

virtual util::Point3	getBondForceDirection (const util::Point3 &dx, const util::Point3 &du) const
	Get direction of bond force. More...

double	getDensity () const
	Returns the density of the material. More...

double	getHorizon () const
	Returns horizon. More...

virtual double	getInfFn (const double &r) const
	Returns the value of influence function. More...

virtual double	getS (const util::Point3 &dx, const util::Point3 &du)
	Returns the bond strain. More...

virtual double	getS (size_t i, size_t j)
	Returns the bond strain. More...

virtual double	getSc (const double &r)
	Returns critical bond strain. More...

virtual double	getSc (size_t i, size_t j)
	Returns critical bond strain. More...

virtual util::Matrix33	getStrain (size_t i)
	Returns strain tensor. More...

virtual util::Matrix33	getStress (size_t i)
	Returns stress tensor. More...

bool	isStateActive () const
	Returns true if state-based potential is active. More...

std::string	name () const
	Returns name of the material. More...

virtual void	print (int nt=0, int lvl=0) const
	Prints the information about the instance of the object. More...

virtual std::string	printStr (int nt=0, int lvl=0) const
	Returns the string containing information about the instance of the object. More...

virtual void	update ()
	Let the material class in the quasi-static case know that there is a new loading step.

Private Attributes
double	d_density
	Density.

size_t	d_dimension
	Dimension.

double	d_horizon
	Horizon.

std::string	d_name
	Name of material.

bool	d_stateActive
	Flag indicating if peridynamic state potential is active.

Detailed Description

A base class providing methods to compute energy density and force.

This is a base class which provides method to compute pairwise energy and force, as well as hydrostatic force and energy.

Constructor & Destructor Documentation

◆ BaseMaterial()

material::pd::BaseMaterial::BaseMaterial	(	const size_t &	dim,
		const double &	horizon
	)

inline

Constructor.

Parameters

dim	Dimension
horizon	Horizon

Member Function Documentation

◆ getBondEF()

virtual std::pair<util::Point3,double> material::pd::BaseMaterial::getBondEF	(	size_t	i,
		size_t	j
	)

inlinevirtual

Returns energy and force between bond.

Parameters

i	Id of node 1
j	Local id in the neighborlist of node i

Returns: pair Pair of energy and force

Reimplemented in material::pd::RNPBond, and material::pd::ElasticState.

Referenced by model::QuasiStaticModel< T >::computePertubatedForces().

Here is the caller graph for this function:

◆ getBondForceDirection()

virtual util::Point3 material::pd::BaseMaterial::getBondForceDirection	(	const util::Point3 &	dx,
		const util::Point3 &	du
	)		const

inlinevirtual

Get direction of bond force.

Parameters

dx	Relative bond vector (reference configuration)
du	Relative bond displacement vector

Returns: vector Unit vector along the bond force

Reimplemented in material::pd::ElasticState, and material::pd::RNPBond.

◆ getDensity()

double material::pd::BaseMaterial::getDensity ( ) const

inline

Returns the density of the material.

Returns: density Density of the material

◆ getHorizon()

double material::pd::BaseMaterial::getHorizon ( ) const

inline

Returns horizon.

Returns: horizon Horizon

◆ getInfFn()

virtual double material::pd::BaseMaterial::getInfFn ( const double & r ) const

inlinevirtual

Returns the value of influence function.

Parameters

r	Reference (initial) bond length

Returns: value Influence function at r

Reimplemented in material::pd::RNPBond, and material::pd::ElasticState.

◆ getS() [1/2]

virtual double material::pd::BaseMaterial::getS	(	const util::Point3 &	dx,
		const util::Point3 &	du
	)

inlinevirtual

Returns the bond strain.

Parameters

dx	Reference bond vector
du	Difference of displacement

Returns: strain Bond strain

Reimplemented in material::pd::RNPBond.

◆ getS() [2/2]

virtual double material::pd::BaseMaterial::getS	(	size_t	i,
		size_t	j
	)

inlinevirtual

Returns the bond strain.

Parameters

i	Id of node 1
j	Id of node 2

Returns: strain Bond strain

Reimplemented in material::pd::RNPBond.

◆ getSc() [1/2]

virtual double material::pd::BaseMaterial::getSc ( const double & r )

inlinevirtual

Returns critical bond strain.

Parameters

r	Reference length of bond

Returns: strain Critical strain

Reimplemented in material::pd::RNPBond.

◆ getSc() [2/2]

virtual double material::pd::BaseMaterial::getSc	(	size_t	i,
		size_t	j
	)

inlinevirtual

Returns critical bond strain.

Parameters

i	Id of node 1
j	Id of node 2

Returns: strain Critical strain

Reimplemented in material::pd::RNPBond, and material::pd::ElasticState.

◆ getStrain()

virtual util::Matrix33 material::pd::BaseMaterial::getStrain ( size_t i )

inlinevirtual

Returns strain tensor.

Parameters

i	Id of node

Returns: strain tensor

Reimplemented in material::pd::ElasticState.

◆ getStress()

virtual util::Matrix33 material::pd::BaseMaterial::getStress ( size_t i )

inlinevirtual

Returns stress tensor.

Parameters

i	Id of node

Returns: stress tensor

Reimplemented in material::pd::ElasticState.

◆ isStateActive()

bool material::pd::BaseMaterial::isStateActive ( ) const

inline

Returns true if state-based potential is active.

Returns: bool True/false

◆ name()

std::string material::pd::BaseMaterial::name ( ) const

inline

Returns name of the material.

Returns: string Name

◆ print()

virtual void material::pd::BaseMaterial::print	(	int	nt = `0`,
		int	lvl = `0`
	)		const

inlinevirtual

Prints the information about the instance of the object.

Parameters

nt	Number of tabs to append before each line of string
lvl	Level of information sought (higher level means more information)

Here is the call graph for this function:

◆ printStr()

virtual std::string material::pd::BaseMaterial::printStr	(	int	nt = `0`,
		int	lvl = `0`
	)		const

inlinevirtual

Returns the string containing information about the instance of the object.

Parameters

nt	Number of tabs to append before each line of string
lvl	Level of information sought (higher level means more information)

Returns: string String containing information about this object

Referenced by print().

Here is the caller graph for this function:

The documentation for this class was generated from the following file:

/root/project/src/material/pd/baseMaterial.h
